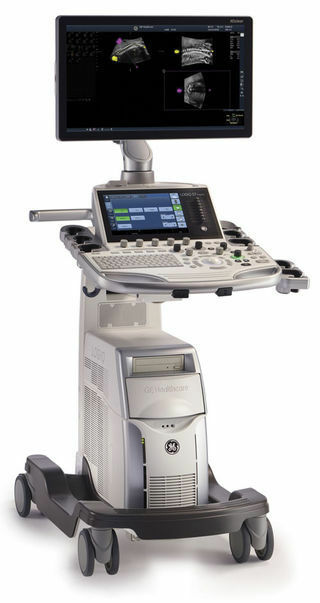

GE Logiq S7 Shared Service Ultrasound Unit

The LOGIQ* S7 Expert is a highly mobile and easy to use, performance multipurpose color Doppler imaging system, designed for Obstetrics, Gynecology, Cardiology, Vascular, Urology, Small Parts, Pediatric, Neonatal, Transcranial, and Abdominal applications. General Profile - Logiq S7 Dimensions and weight Height Standard: 1750 mm (68.9 in) Tall: 1115 mm (43.9 in) Width Keyboard: 500 mm (19.7 in) Caster: 620 mm (24.4 in) Depth Maximum: 856 mm (33.7 in) Caster: 790 mm (31.1 in) Weight (no Peripherals) 90 kg/198 lbs

System standard features

Advanced user interface with high resolution 7- wide LCD touch screen Automatic Optimization CrossXBeam compounding Speckle Reduction Imaging (SRI-HD) Fine Angle Steering Coded Harmonic Imaging Virtual Convex Patient information Database Image Archive on integrated CD/DVD and hard drive Raw Data Analysis Real-time automatic Doppler calculations OB Calculations Fetal Trending Multigestational Calculations Hip Dysplasia Calculations Gynecological Calculations Vascular Calculations Urological Calculations Renal Calculations Cardiac Calculations Remote capability: InSite ExC On-board electronic documentation MPEGVue Key Macro Network Storage Quick Save Quick Patient Entry

System Options

Auto IMT Elastography Elastography Q-Analysis1 Advanced 3D DICOM 3.0 Connectivity LOGIQView B-Flow/B-Flow Color CF/PDI Quantification B Steer+ Stress Echo Tissue Velocity Imaging (TVI) with Q-Analysis Scan Assistant Report Writer Coded Contrast Imaging2 ECG + AHA/IEC Cables CW Doppler DVR Kit Real Time 4D 4D TUI VOCAL VCI Static Cabinet: High/Mid/Low Drawer Small Probe Adaptor Vertical Endocavitary Probe Holder Side Probe Holder Probe Cable Hanger 3-Pedal Foot Switch Isolation transformer
