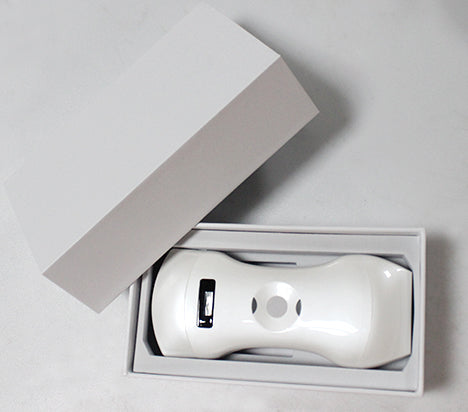

MedicVue CL3CS Wireless Handheld 3 in 1 Transducer

Combining 192 element imaging in a small handheld ultrasound is no easy feat. The higher echelon imaging CL3CS combines abdominal and small parts/vascular imaging with cardiac imaging to form a small do it all ultrasound unit. Easily carryable in your pocket, this probe allows you a sharp image wherever you go.
Specifications
- Electronic array with 192 elements
- Scanning mode - B, B/M, Color, PW, PDI

[Convex]
- Frequency - 3.5 - 5 MHz
- Depth - 90/160/220/305mm
- Scan angle: 60 degree
- Head Radius: 60 mm

[Cardiac]
- Frequency - 3.5 - 5 MHz
- Depth - 90/120/140/160 mm
- Scan angle: 80 degree

[Linear]
- Frequency - 7.5 - 10 MHz
- Depth: 20/40/60/80 mm
- Linear head - 40mm
- Image Adjustment : Gain, TGC, Focus, Harmonic, Denoise, Depth,
Dynamic Range, PRF, WF
- Biopsy Assistance : The function of in-plane/out-of-plane puncture guide
line and automatic blood vessel measurement
- Measure : Length, Area, Circumference, Angle, Obstetrics, Trace
- OB Measurement: GA(CRL), GA(BPD), GA(GS), GA(FL),GA(HC), GA(AC),
EFW(BPD), EFW(FL)
- Annotation
- Image frame rate : 18 frames per second
- Image save : jpg, avi and DICOM format
- Battery lasts 3 hours when fully charged
- Dimension : 6.2 x 2.6 x 0.87 inch/ 157 x 66 x 22 mm
- Weight : 8.4 oz / 240g
- WiFi Type : 802.11g/20MHz/5G/450Mbps
- Warranty : 1 Year Warranty
