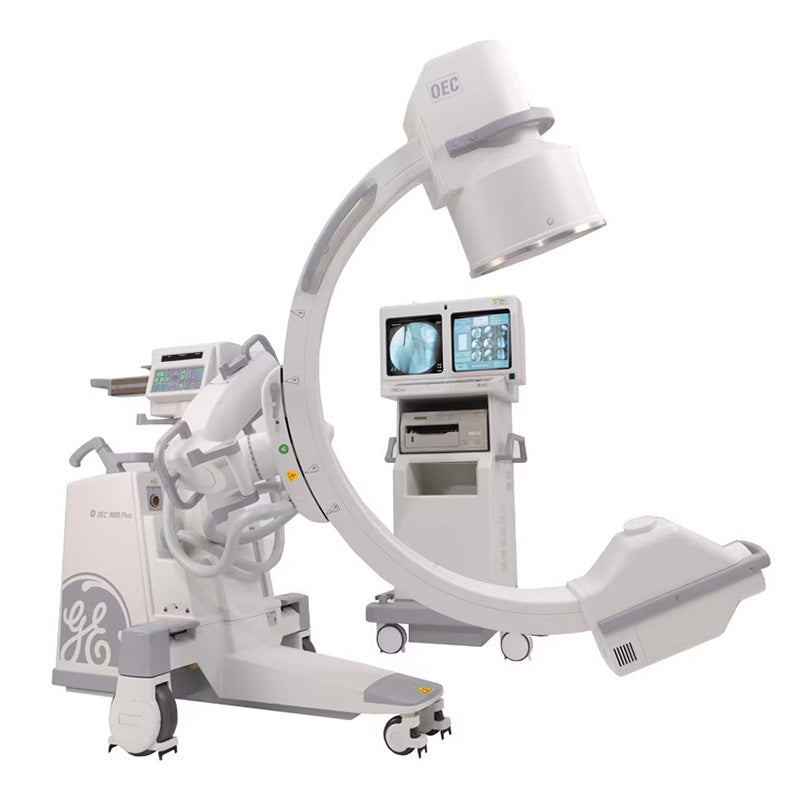

GE OEC 9800 C-Arm

The GE OEC 9800 first launched in 1999, and the upgraded version, the GE OEC 9800 plus, introduced in 2002. It was finally discontinued in 2006 just before the GE C ARM manufacturing facility in Utah claimed the recall by FDA in 2006. There has been no successor of the GE OEC 9800 since 2006. The GE OEC 9900 and the GE OEC 9800 are quite similar in terms of specification and clinical utilities, so GE simplified its product line-up and decided to have the OEC 9900 series with an II (Image Intensifier) type C ARM and a CMOS flat panel detector type CARM. From this perspective, in 2017, GE cleared the 510(k) for their CMOS Flat Detector, now incorporated into the GE OEC Elite CFD as a premium grade C-ARM system. The GE OEC 9900 was upgraded with a 1k x 1k CCD camera and the traditional II type is still importantly positioned as a key C-ARM product in the GE C-ARM line-up.

- Generator

- 60kHZ high frequency - 15kW power - Up to 120kVp - Up to 75mA for radiographic film exposure - Continuous high level fluoro (HLF) up to 20mA - Digital spot up to 75mA - Digital cine pulse - 15 pulses per second, 60 Hz - 12 pulses per second, 50 Hz - Up to 150mA - 10ms pulse width - Full power from standard wall outlet - Pateneted battery buffered design

- X-RAY Tube

- Rotating anode X-ray tube - 0.3 and 0.6 nominal focal spots - Anode heat capacity: 300,000 HU - Anode cooling rate: 70,000 HU/min - Housing heat capacity: 1,600,000 HU - 9- (23cm) Standard C-arm housing cooling rate 15,000 HU/min - 9- (23cm) Super C-arm and 12- (31cm) standard C-arm housing cooling rate 22,500 HU/min - 9- (23cm) Cardiac Super C-arm and motorized(MD) C-arm housing cooling rate 31,000 HU/min

- Collimator

- On-screen collimator position indication - PreView- iris collimator - PreView- Tungsten rotatable double leaf collimator - Adjusts collimators without X-ray exposure

Imaging Mode

- Fluoroscopy Mode

- Focal spot: 0.3 mm - kVp range: 40 - 120 kVp - mA range: 0.2 - 10 mA normal mode - mA range: 1.0 - 20 mA continuous fluoro boost mode - Auto and manual modes - Continuous, one-shot or pulsed operation - AutoTrack ABS varies mA, kVp and camera gain - User specific ABS tables

- Pulsed Fluoroscopy Mode

- Focal spot: 0.3 mm - kVp range: 40 - 120 kVp - mA range: 0.2 - 10.0 mA - Pulse rate: 1, 2, 4, or 8 pulses per second - Pulse width: 25 or 50 milliseconds - Computer controlled ABS, mA, kVp and camera gain - Reduces X-ray dose to patient and operator

- High Level Pulsed Fluoro (optional)

- Focal spot: 0.3 mm - kVp range: 40 - 120 kVp - mA range: 0.2 - 40.0 mA - Pulse rate: 1, 2, 4, or 8 pulses per second - Pulse width: 25 or 50 milliseconds - Computer controlled ABS, mA, kVp and camera gain

- Digital Spot Mode (optional)

- Standard with the Expanded Surgical Platform (ESP) - Enhanced digital fluorographic oneshot with 12 mA boost - Automatically terminates exposure and stores enhanced image to storage archival disk - kVp range: 40 - 120 kVp - mA range: Up to 75 mA

- Radiographic Mode

- Focal spot: 0.3 mm or 0.6 mm - Focal spot automatically selected - 0.3 mm - mAs range: 1 - 100 mAs - 0.6 mm - mAs range: 110 - 300 mAs - kVp range: 50 - 120 kVp - Optional film cassette holder - 10- x 12- (24cm x 30cm) for 9- I.I - 14- x 14- (35cm x 35 cm) for 12- I.I.

Acquisition & Optimization

- Video Camera

- High resolution CCD camera - Full frame capture - 360 motorized rotation - On-screen orientation indicator (realtime feedback without fluoro) - Left-right image reversal - Top-bottom image reversal - Negative mode - Video signal: Standard RS 170A 60 Hz, 525 lines - Aspect ratio: 4:3 - Computer controlled features: - Gain, Blanking, Camera iris

- Image Intensifier

- 9- Image Intensifier - Tri-mode 9-/6-/4.5- (23cm/15cm/11cm) image intensifier - 12- Image Intensifier - Tri-mode 12-/9-/6- (31cm/23cm/15cm) image intensifier

- Image Optimization

- AutoTrack ABS(Automatic Brightness Stabilization - Smart Window - Smart Metal - Tungsten Collimator

Clinical Software Options

- GSP - General Surgical Package - ESP - Expanded Surgical Package (optional 8 Frames Per Sec) - Vascular Package ( 8/15 Frames Per Sec) - Neuro Vascular Package (30 Frames Per Sec) - with MTS(Motion Tolerant Subtraction) - Cardiac Package (30 Frames Per Sec)

Dimension

- C-Arm(9- I.I.) Dimensions:

- Height: 69.7 in (1770 mm) - Width: 33.5 in (851 mm) - Length: 78 in (1994 mm) - Weight: 610 lbs (277kg)

- Workstation Dimensions:

- Height: 64.25 in (1632 mm) - Width: 27.25 in (692 mm) - Depth: 27.25 in (692 mm) - Weight: 450lbs (204kg)

Additional Features

- User Interface

- Entire system is computer controlled and software upgradeable - Touchscreen control available - Multi-functional controls - Footswitch, IR remote (Optional), Hand-hel control - Multi-purpose image directory - Retrieve and review images - Compose hardcopy films - Copy images - X-ray dose summary

- Hardcopy Options

- Integrated film/paper printer - No film developing required - 8- x10- (20.3cm x 25.5cm) laser quality film/paper - Thermal printers - Integrated DICOM 3.0 Interface (storage class/print class/query work-list) - Laser aiming device (optional)

- Other image Stroage Options
